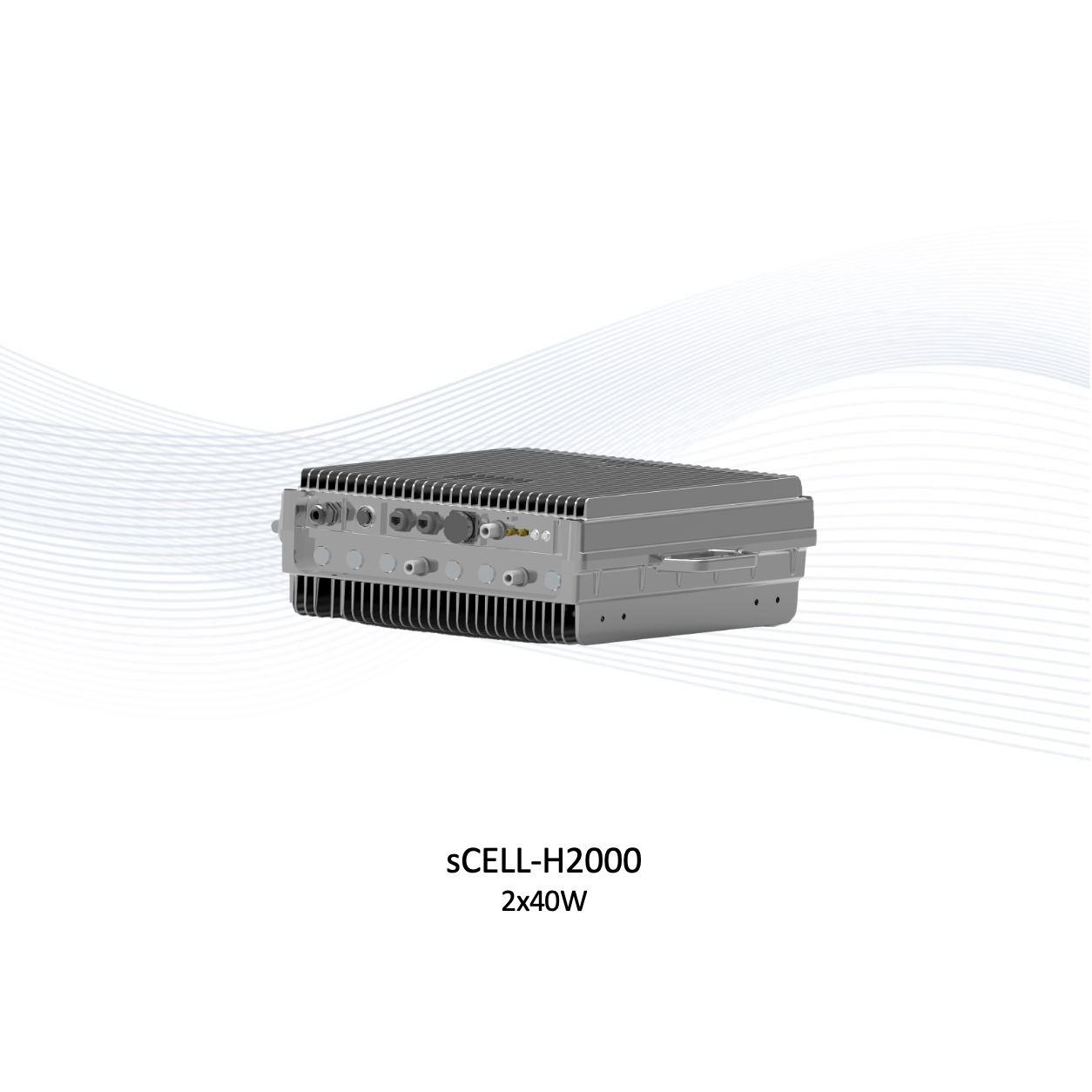

4G Integrated eNB - sCELL-H2000

The sCELL-H2000 from SUNWAVE are advanced outdoor LTE compact eNodeB products with two output power options: 2x20W and 2x40W, which can operate in either TDD or FDD mode. These devices provide users with high-speed broadband wireless access to the Internet and can operate in 5, 10, 15, or 20 MHz bandwidth, supporting 192 concurrent users and 384 RRC users.
  • sCELL-H2000 2x20W & 2x40W
  • Sunwave Communications
Availability:

Key Benefits and Advantages

    Plug and Play Solution

        ●    All-in-one compact design

        ●    2 mins power-on waiting time

    Cost-effective Site

        ●    No need on indoor equipment

        ●    Easy maintenance

    Ultra Broadband Access

        ●    2T2R ,192 active users

        ●    Supports SA0, SA1, SA2

        ●    Supports SON

Key Features


BOTH FOR 2x20W and 2x40W

     ●    3GPP Release 13 standards

     ●    Supports 5/10/15/20 MHz bandwidth

     ●    GUI-based local and remote web management

     ●    TR069 network management interface support

     ●    External high-gain antenna

     ●    192 concurrent users per eNodeB

     ●    384 RRC users per eNodeB

     ●    Passive Cooling IP65


2x20W ONLY

     ●    Standard LTE TDD Band 40 or customized

     ●    Peak rate (per unit): DL 145 Mbps, UL 30 Mbps @ 20 MHz bandwidth


2x40W ONLY

     ●    Standard LTE FDD Band 3/5 or customized

     ●    Peak rate (per unit): DL 145 Mbps, UL 45 Mbps @ 20 MHz bandwidth


Resources

Resources

   4G Integrated eNB - sCELL-H2000 2x20W Datasheet:   SP_SW_sCELL-H2000_2x20W_V3.9.pdf

   4G Integrated eNB - sCELL-H2000 2x40W Datasheet:    SP_SW_sCELL-H2000_2x40W.pdf
