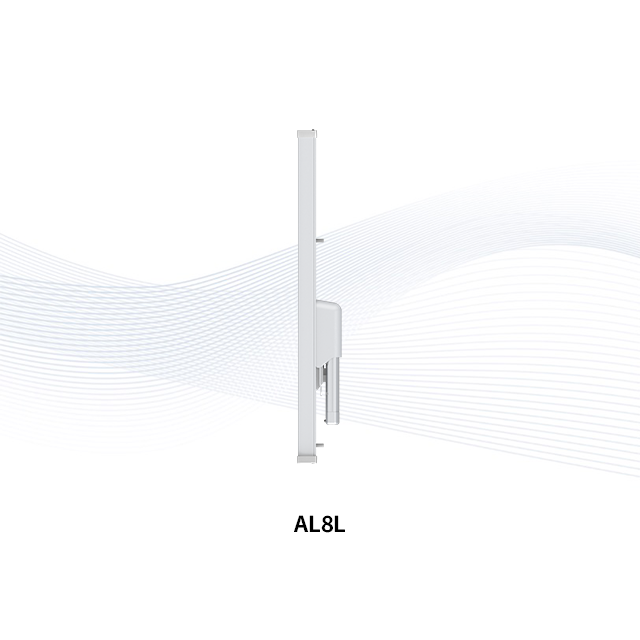

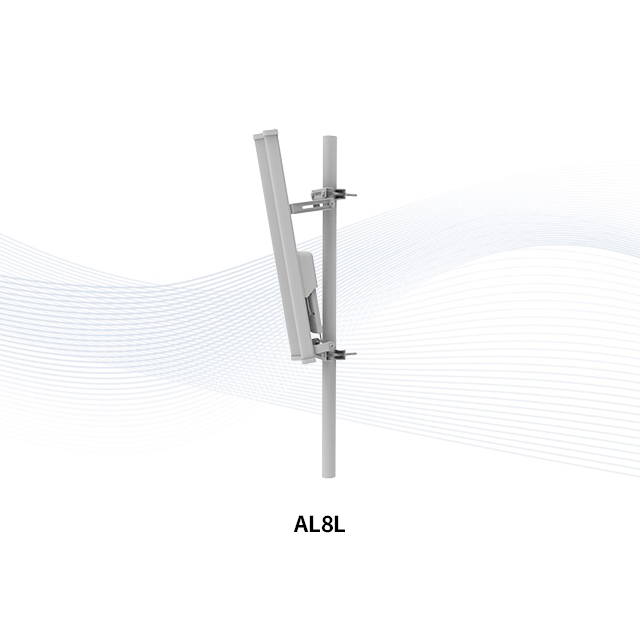

AL8L PtMP Center Station

The AL8L from SUNWAVE is a 15 KM 802.11 a/n/ac 5G outdoor wireless base station, providing customers with stable and convenient outdoor wireless connection. The design of the AL8L complies with the IP56 standard. It can protect from water, dust, oil and other non-corrosive materials, which ensures that it can smoothly operate in the harsh environment.
  • AL8L
  • Sunwave Communications
Availability:

Product Selling Point




Key Features

   Supports 802.11a/n/ac standard and 2×2 MIMO standard

   The highest transmission rate is 867 Mbps

   Outdoor recommended transmission distance: 0 ~ 15 km

   Integrated antenna, quick installation

   Built-in VTrans technology, including TDMA+, Frequency (channel) extension function, Channel width selection, and Auto ACK function

   Intelligent QoS wireless multimedia optimization technology, providing high priority transmission levels for voice and video

●   Supports wireless spectrum scanning, can analyze the spectrogram of the set spectrum, can monitor the real-time energy information of the environment, including WIFI and non-WIFI energy

●   Supports JTrans, it can reduce the external interference from the same frequency band of the equipment and accessories, so that the equipment can have better network stability in the environment of large interference

●   Supports high-precision wireless link test function, compared with professional testers, test error ≤ 3%

●   Supports antenna calibration tool, real-time aligning the antenna

   Supports dual firmware backup. The mechanism can prevent the device from stopping work in extreme conditions

   Supports web page management, making installation and maintenance of the equipment more convenient

   Supports wireless controller (AC) management, realize remote centralized configuration and upgrade management

   The digital tube displays the signal strength, which is convenient for debugging

   IP56 Protection level


Resources

Resources

   AL8L Datasheet (March 2022):    SP_SW_AL8L.pdf
