5G Distributed gNodeB - nCELL-T5000

The nCELL-T5000 from SUNWAVE is used to realize 5G NR base station processing unit to centrally control and manage the entire base station system. It realizes direct access and data interaction with 5G core network, with NGAP and XnAP interface. Also, the product realizes 5G NR access network protocol stack function, RRC, PDCP, SDAP, RLC, MAC and PHY protocol layer functions, as well as baseband processing functions.

  • nCELL-T5000

  • Sunwave Communications

Availability:
Inquire

Key Features


  • System Structure

    • Supports SA networking architecture

    • Supports CU/DU joint or separate installation

  • Support Configuration

    • 100 MHz 4×4 MIMO /2x2 MIMO

    • 2 cells@2T2Ror 4T4R 100 MHz (D-2177NT)

    • 4 cells@2T2R 100 MHz (D-2187NT)

    • 4 cells@4T4R 60 MHz (D-2187NT)

    • Supports MOCN/MORAN

  • Transmission Rate:

    • DL ≥ 1.5 Gbps, UL ≥ 260 Mbps (DDDSU 100 MHz Bandwidth)

    • DL ≥ 658 Mbps, UL ≥ 669 Mbps (DSUUU 100 MHz Bandwidth)

  • System bandwidth: 20/40/50/60/80/100 MHz

  • Platform:

    • Intel® Xeon® D-2177NT Processor 1.90 GHz (14C/28T, 105W)

    • Intel® Xeon® D-2187NT Processor 2.00GHz (16C/32T, 110W)


RU Options:

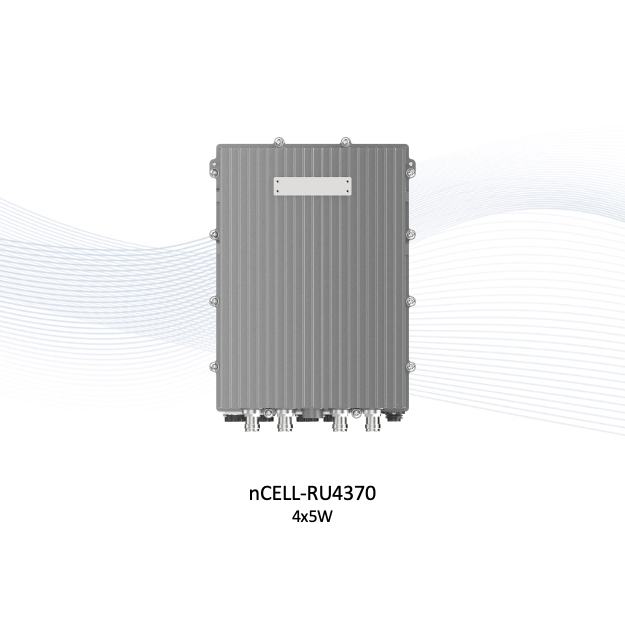

1. nCELL-RU4370 (4x5W): a radio frequency unit (RRU) for 5G NR outdoor base stations. It forms a complete 5G base station together with the baseband unit (BBU), which is used in mobile communication cell cellular networking scenarios.

The platform supports fiber optic cable cellular technology with eCPRI protocol. The Power amplifier technology uses DPD (digital pre-distortion) technology, compared with analog technology, power consumption has been significantly improved. The platform is ideal for underground tunnel and outdoor overlay deployments for cellular services.


2. nCELL-RU4460 (4x40W): a high output power radio frequency unit (RRU) for 5G NR outdoor base stations. It forms a complete 5G base station together with the baseband unit (BBU), which is used in mobile communication cell cellular networking scenarios.


The platform support fiber optic cable cellular technology with CPRI/eCPRI protocol. The Power amplifier technology uses DPD (digital pre-distortion) technology, compared with analog technology, power consumption has been significantly improved. The platform is ideal for underground tunnel and outdoor overlay deployments for cellular services.

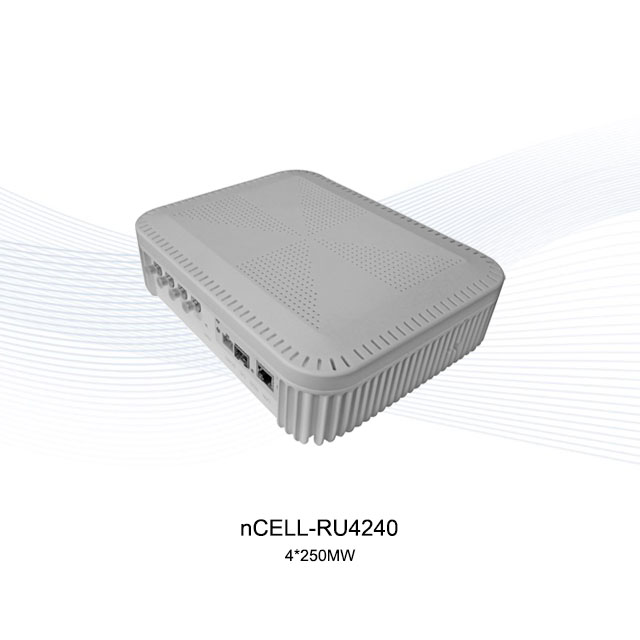

3. nCELL-RU4240 (4x250MW):  a remote unit in a 5G extended leather base station and usually needs to be used in conjunction with an extension unit (EU) and a baseband unit (BBU) to achieve 5G wireless signal coverage. This 5G pRRU remote unit adopts digital technology and uses optical fiber to carry wireless signals for remote coverage. It is mainly used in indoor coverage scenarios.


Resources

Resources

nCELL-T5000 Datasheet (May 2023):   SP_SW_nCELL-T5000 and Acceleration Card_V1.7.pdf
