CrossFire M3RU-L

Introduction:

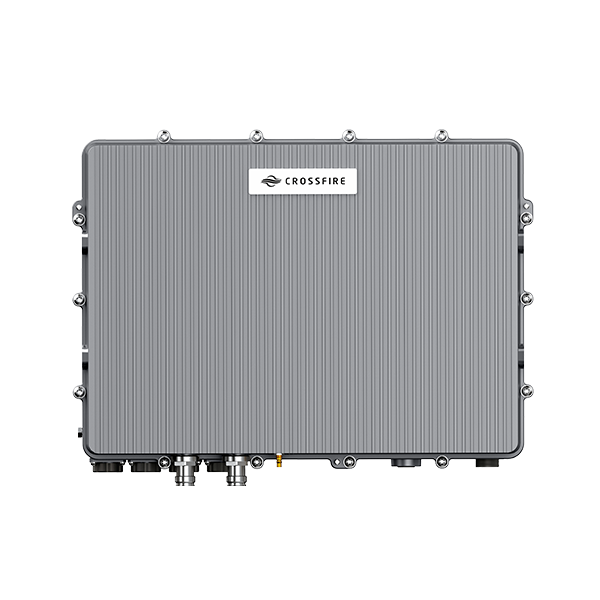

M3RU-L stands for Medium Power Remote Unit 3.0 (Low Frequency), which is a medium-power remote unit in SUNWAVE’s 3rd-generation CrossFire platform system (CrossFire 3.0). It connects to the A3/E3 via fiber optic cables and converts the digital signals received from the A3/E3 into RF signals before transmitting them through an antenna. Each M3RU is equipped with an 8-band combiner, 7 low-frequency modules, and reserves 1 interface for external 5G signals. It supports multiple frequency bands and flexible networking, and is ORAN-compatible with a firmware upgrade.

Inquire

Features:



14xOptical ports to RUs



1xOptical port to AU or upper level; 1xOptical port to lower level EU



Up to 6 levels Cascading

KEY SPECS:

Here is the requested table:

Frequency Range	600–2700 MHz
System Bandwidth	1200M
Channel	Integrated 8 Bands Combiner (Up to 7 Sub-3G Bands + 1 External 5G Band)
Output Power	37dBm
IP Rating	IP67
Cooling	Passive
