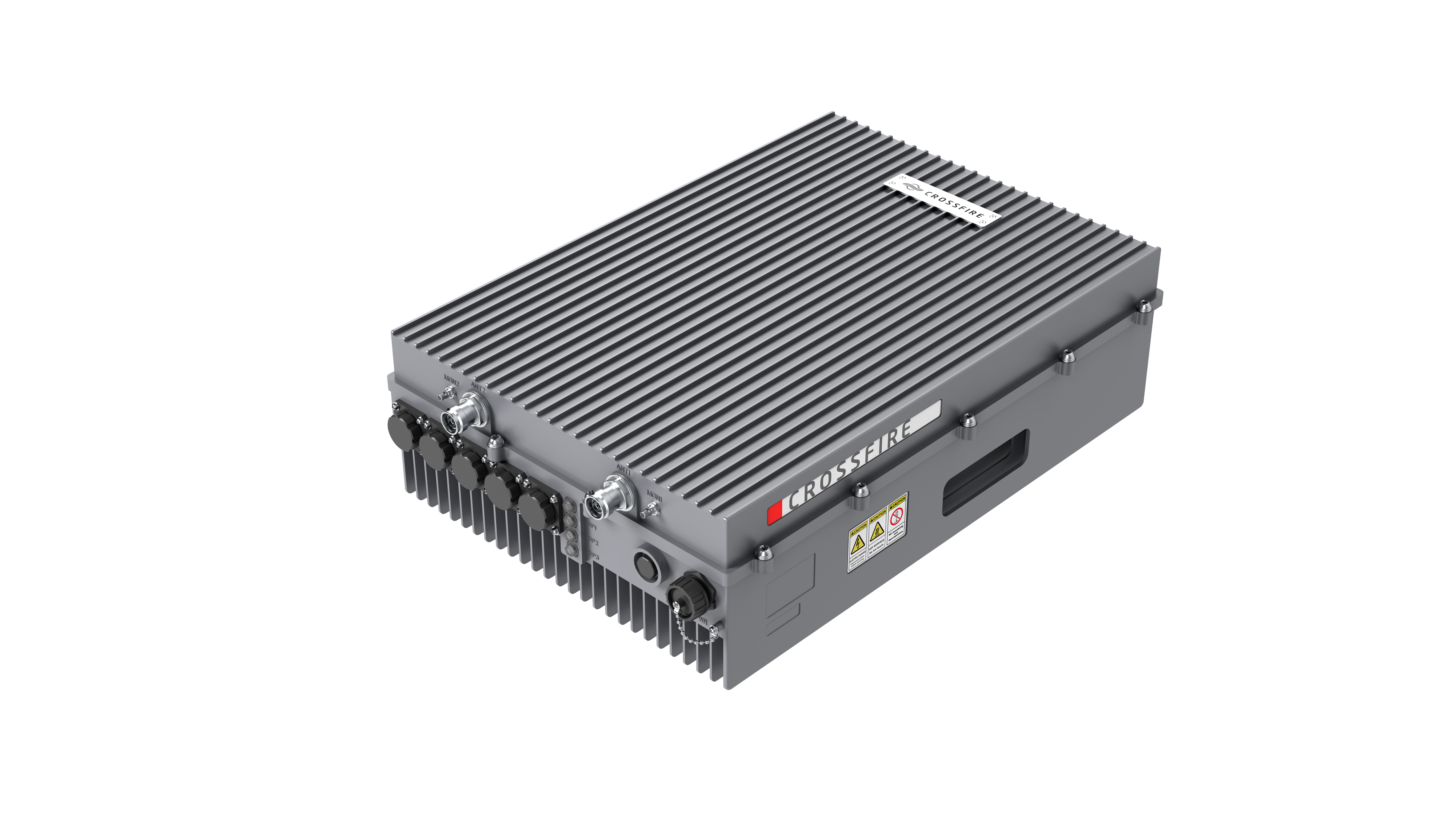

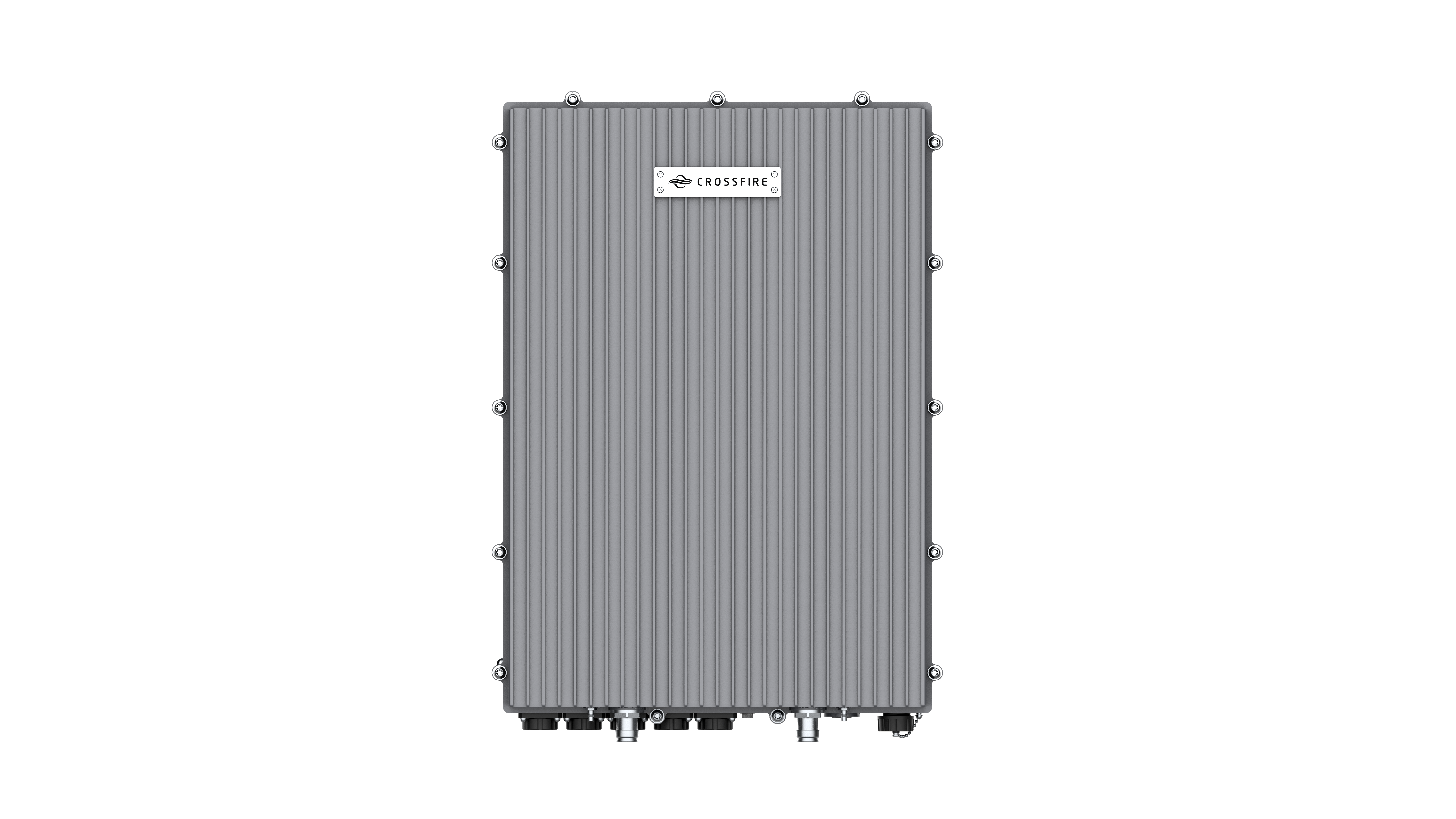

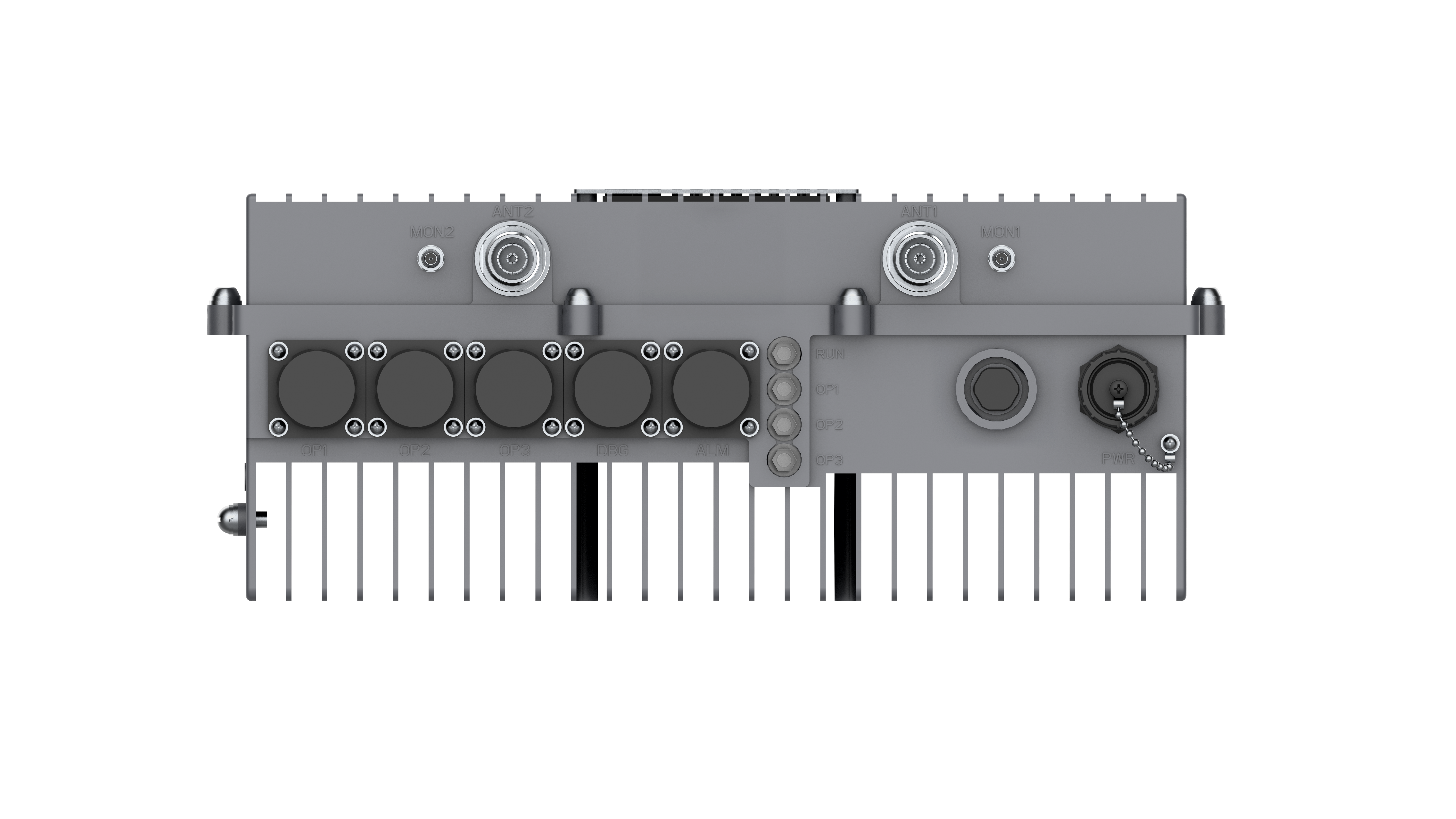

H3RU is the high-power RRU of SUNWAVE’s third-generation CrossFire platform (CrossFire 3.0). It connects to the A3/E3 via fiber optics, converts digital signals into RF, and transmits them through antennas. Each H3RU supports four channels, multiple frequency bands, and flexible network deployment. O-RAN support is enabled through firmware upgrades.
| Frequency Range | 600–4200 MHz (TDD & FDD) |
| Channel | 4 channels (Single Band 4T4R / Quad Bands SISO) |
| Bandwidth | 400 MHz per Channel |
| Output Power | Up to 46dBm |
| Cooling | Passive |
| IP Rating | IP67 |
| Cascade | Up to 6 levels Cascade |
