LTE Distributed eNB-T4000

Introduction:

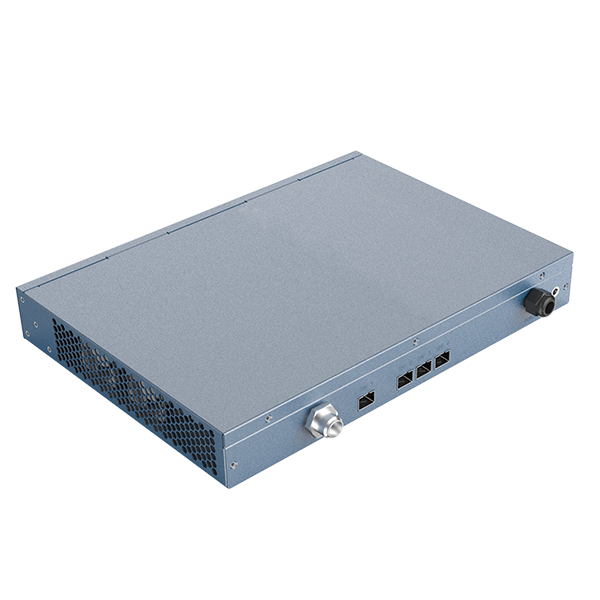

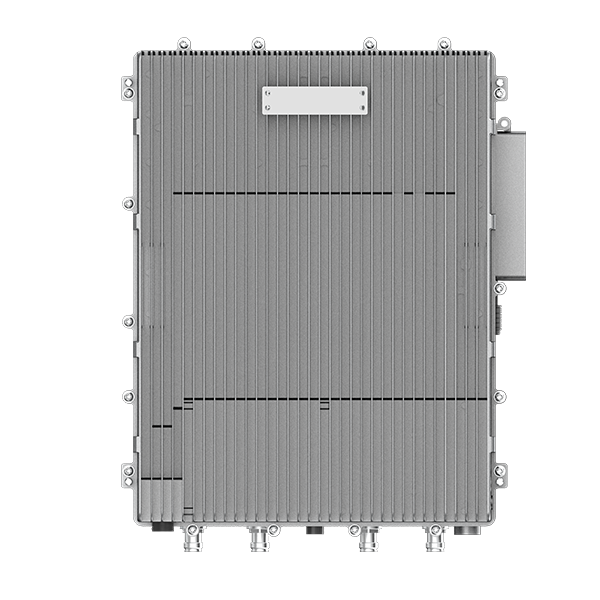

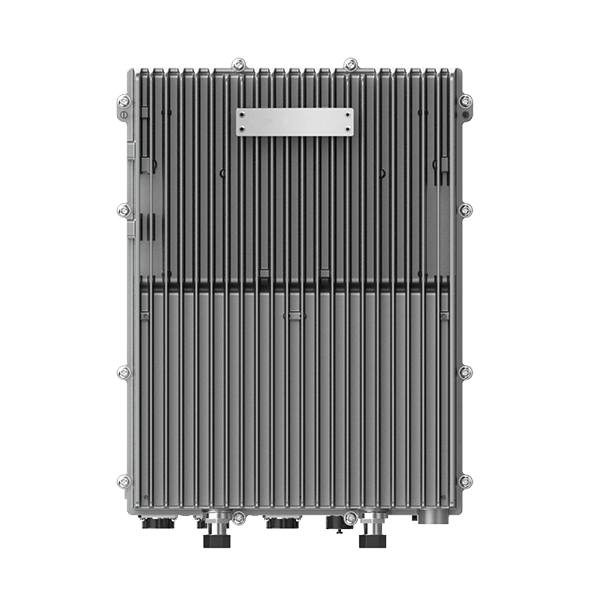

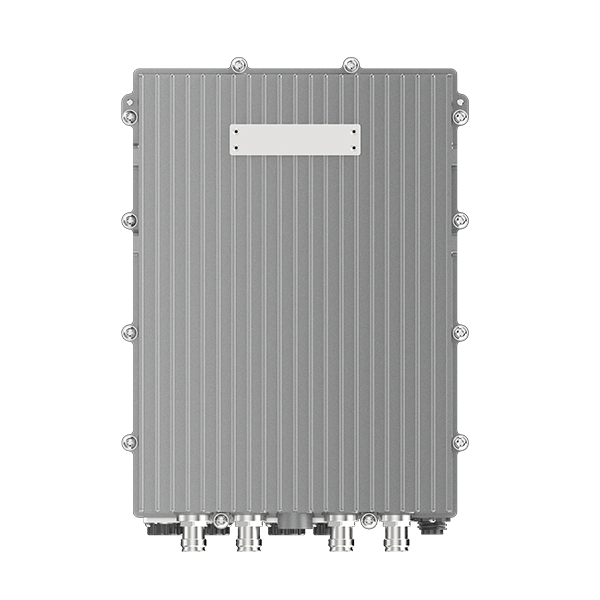

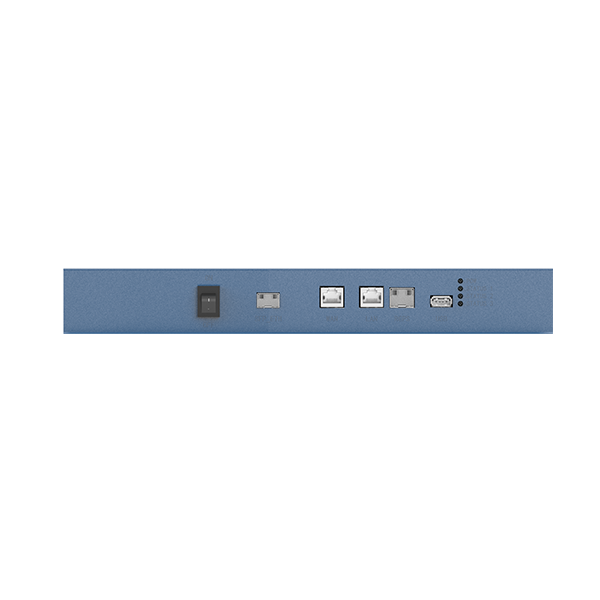

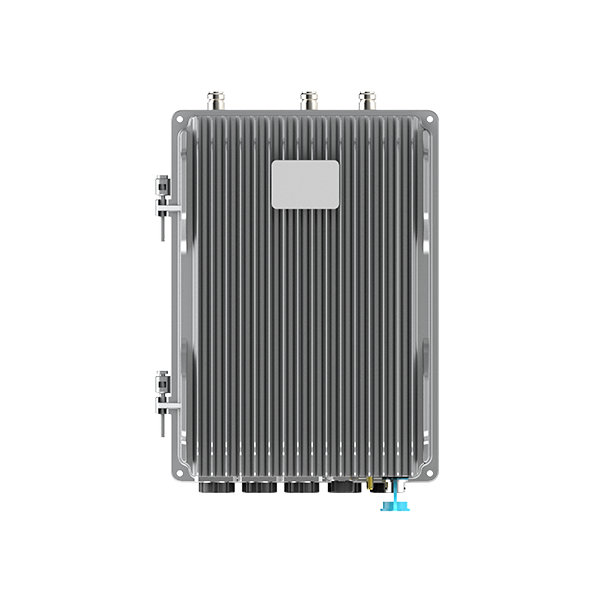

The sCELL-T4000 from Sunwave primarily handles wireless access functions, including air interface management, access control, mobility control, user resource allocation, and other radio resource management and wireless service transmission functions. It consists of the Baseband Unit (BBU) T4000 and Remote Radio Unit (RRU).

Inquire

Features:

Supports indoor and outdoor deployment
Max 3 LTE cells per BBU
Max 256 RRC each cell
Hardware compatible with CPRI and eCPRI interface
Software upgrade to eCPRI

KEY SPECS:

Item	T4000-ID 4G BBU	T4000-OD 4G BBU
Standard	3GPP R15
Mode	TDD/FDD
Channel Bandwidth	3/5/10/15/20 MHz
Operational Capacity	Max 256 users each cell
MIMO	22 MIMO/ 44 MIMO
Power Consumption	50W
Size (HxWxD)	330 x 238 x 44 mm	322 x 245 x 136 mm
	12.99 x 9.37 x 1.73 in	12.68 x 9.65 x 5.35 in
Weight	4 kg \| 8.82 lbs	<15kg \| 33.07lbs
Radio Selection	2X20W/2X40W/4X5W/4X40W
