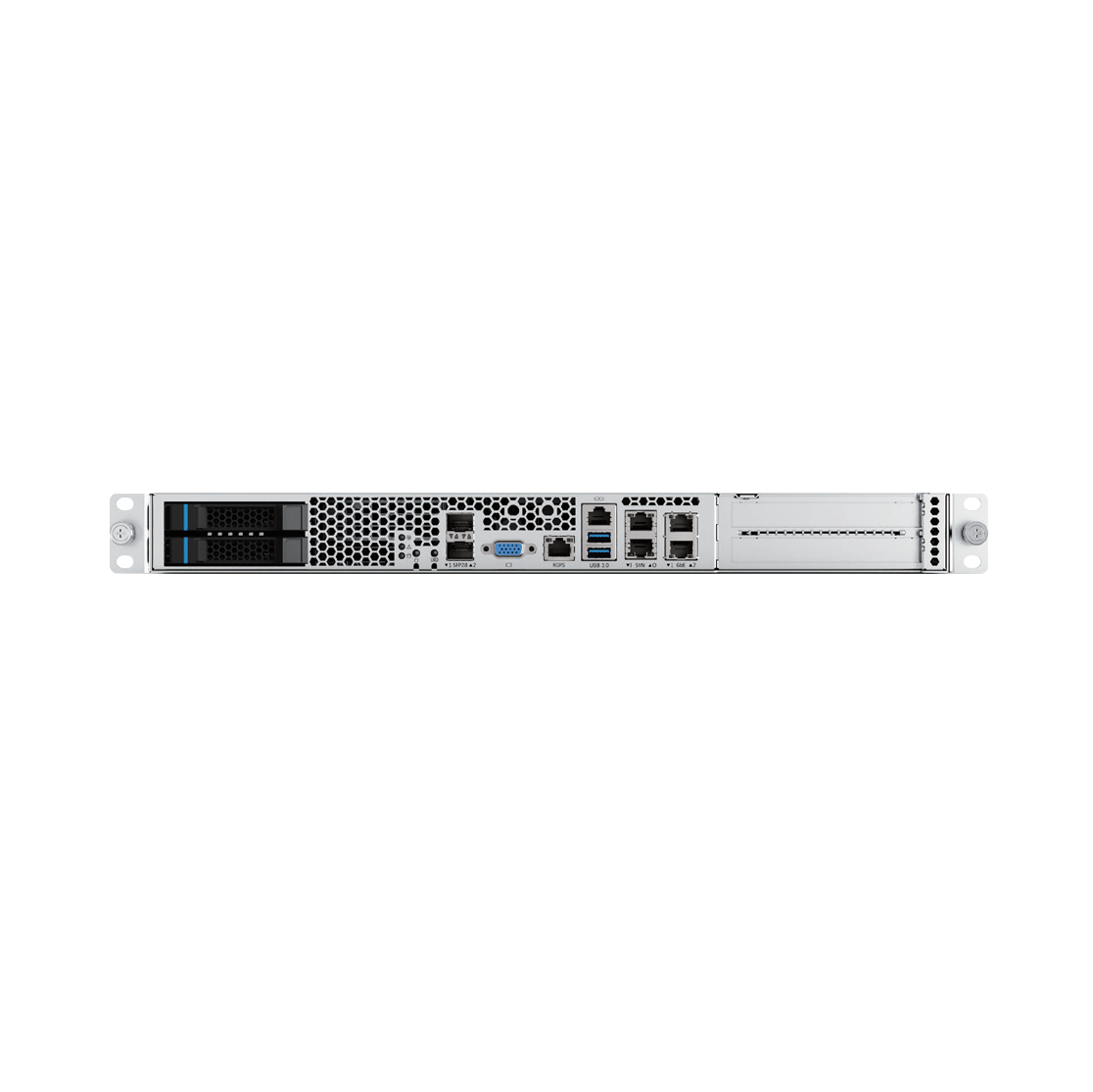

5G Distributed gNB-T5100

Introduction:

The nCELL-T5100 from SUNWAVE is used to realize 5G NR base station processing unit to centrally control and manage the entire base station system. It realizes direct access and data interaction with 5G core network, with NGAP and XnAP interface. Also, the product realizes 5G NR access network protocol stack function, RRC, PDCP, SDAP, RLC, MAC and PHY protocol layer functions, as well as baseband processing functions.

Inquire

Features:

Support Carrier aggregation
4x cells@4T4R 100 MHz
1600 Concurrent Users per BBU
Dual-Mode: NR+LTE
Designed to support multiple deployment scenarios

KEY SPECS:

System Structure	5G NR SA
System Structure	3GPP R/16/17*
System Capacity	Support Carrier aggregation
	DL 4x4 MIMO or 2x2 MIMO
	UL 2x2 MIMO
	4x cells@4T4R 100 MHz
	1600 Concurrent Users per BBU
	Supports MOCN/MORAN
Transmission Rate	MAC Layer: DL ≥ 1.5 Gbps, UL ≥ 260 Mbps (DDDSU 100 MHz BW)
Transmission Rate	MAC Layer: DL ≥ 658 Mbps, UL ≥ 669 Mbps (DSUUU 100 MHz BW)
System Bandwidth	10/20/40/50/60/80/100 MHz
Platform	Single 4th Gen Intel® Xeon® Processor

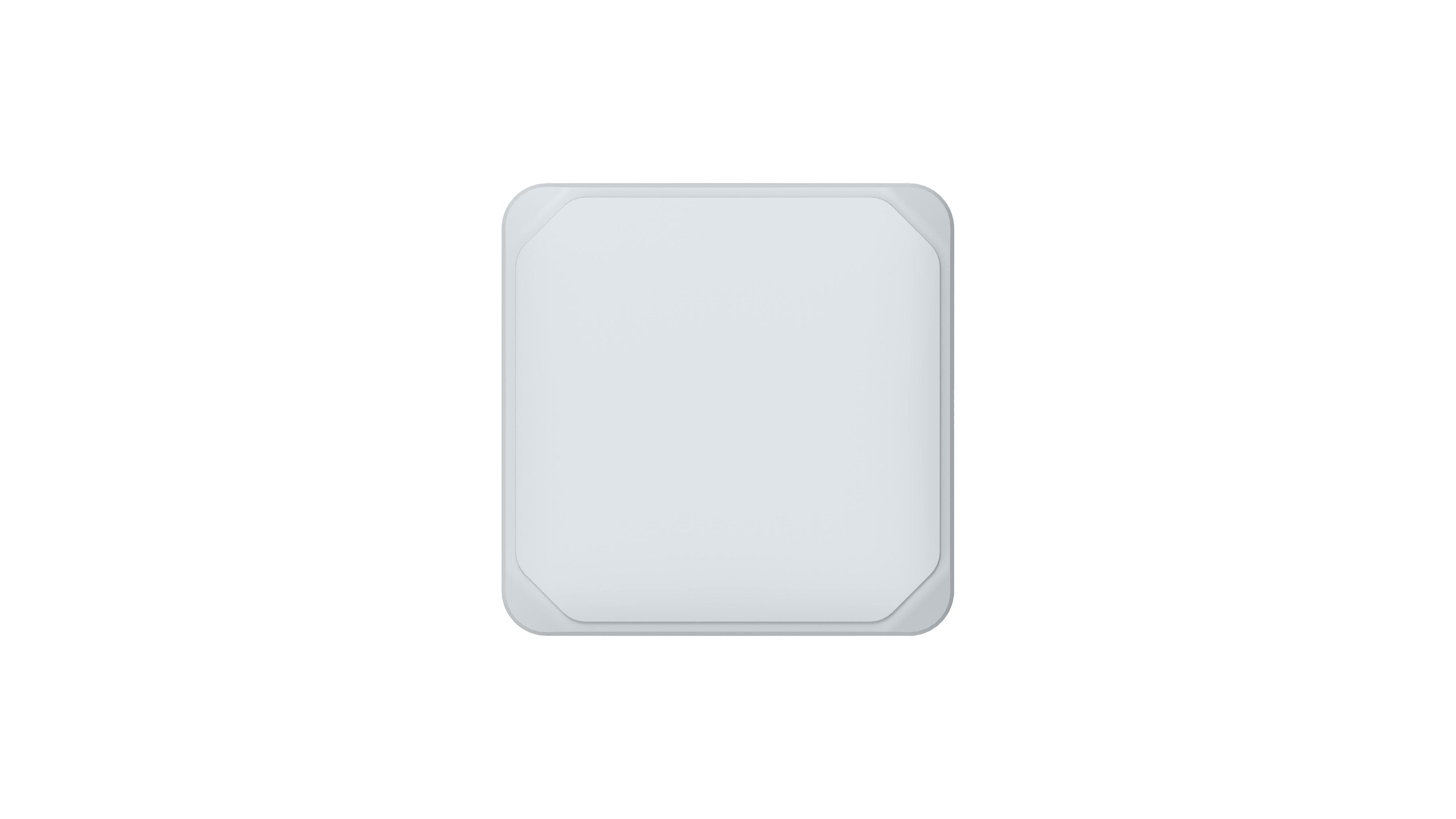

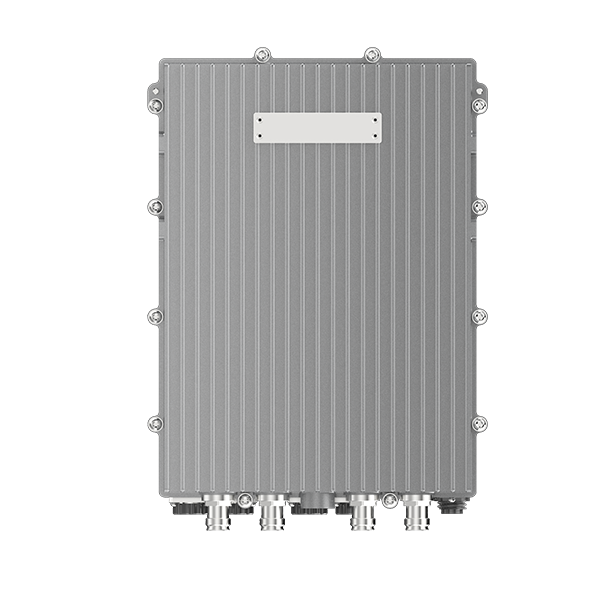

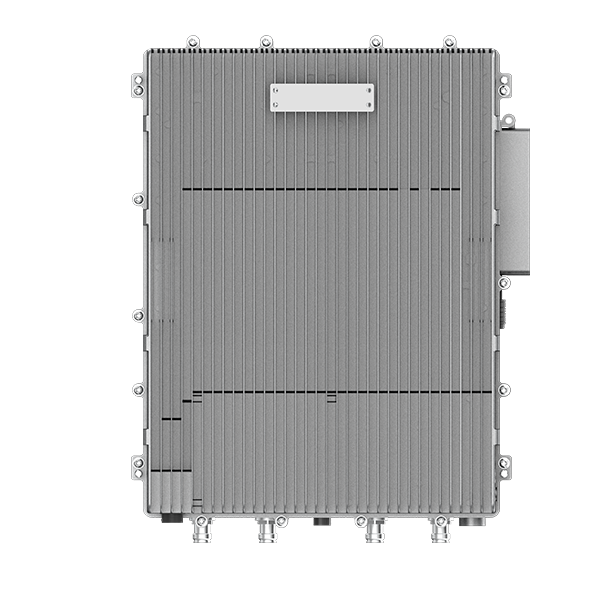

Radio Selection	8x320mW/4X5W/4X40W
