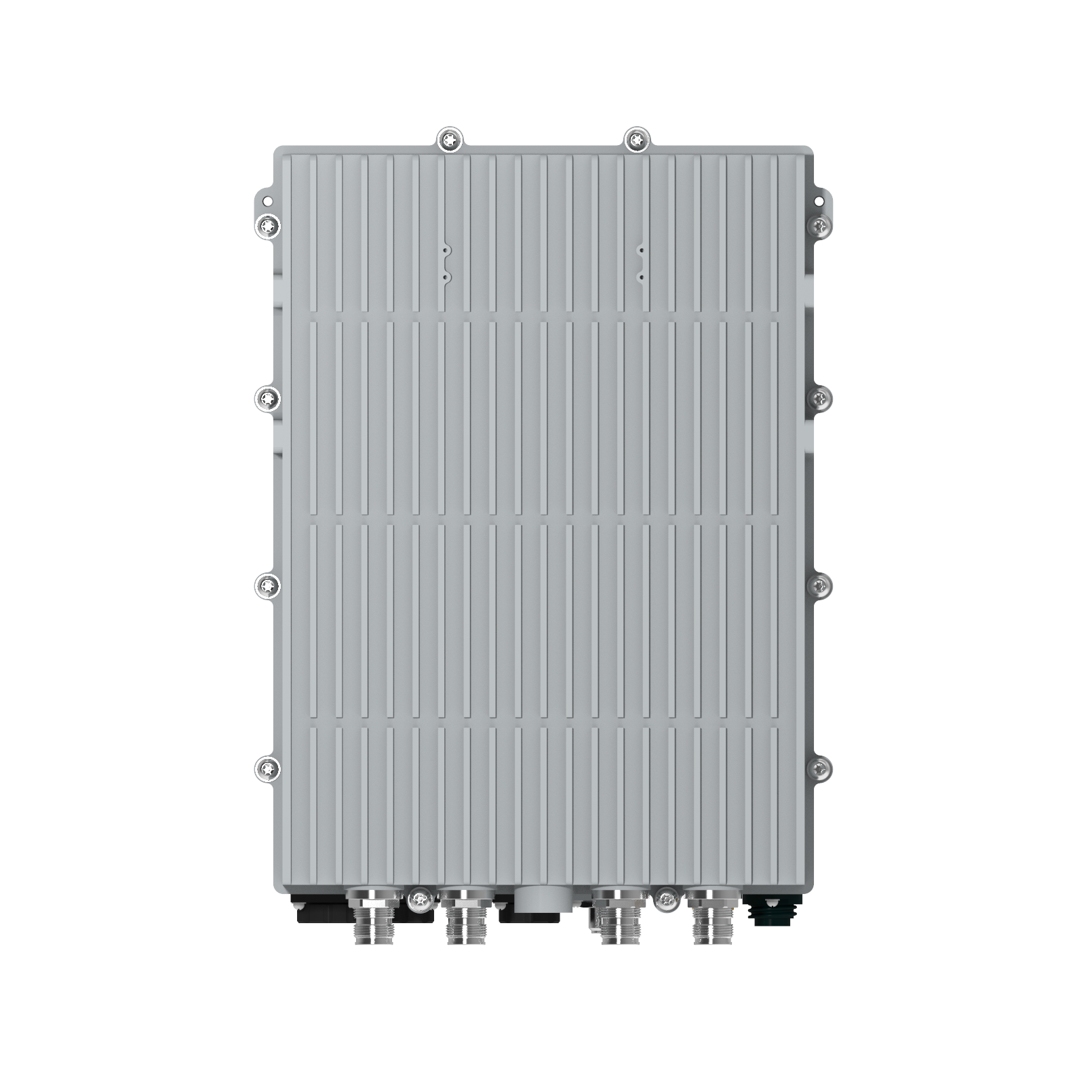

5G Integrated gNB – nCELL-M

Introduction:

The nCELL-M is an advanced 5G integrated small cell powered by Qualcomm’s 4nm FSM200 platform, delivering superior power efficiency, high performance and reliability. Its innovative BBU+RRU integrated design simplifies deployment while supporting complete 5G NR wireless access. Built on a fully independent protocol stack and system software, the solution enables rapid deployment of robust 5G coverage networks. The readiness and flexibility are ensured through optional next-gen 5G-enabled edge computing, making it ideal for both standalone and embedded 5GC architectures.

Inquire

Features:

All-in-one design, embedded 5GC
Qualcomm’s Dragonwing FSM200 Platform
Based on 3GPP R16 technology with high-speed data and low latency services
Supports external antenna or integrated antenna
Supports 400 RRC Subs
Supports GPS, 1588V2 clock synchronization
Web-based management, convenient and intuitive
Humanized indicator light, easy to observe and manage equipment status

KEY SPECS:

Technology	5GNR
TRx Configuration	4T4R
Composite Output Power	4x5W
Channel Bandwidth	10/20/40/50/60/80/100 MHz
Power Supply	DC-48V
CA*	2CC CA
Power Consumption	< 200W
Dimension (H x W x D)	360 x 260 x 115 mm \| 14.17 x 10.24 x 4.53 in
Weight	< 12 kg \| 26.46 lbs
Ingress Protection	IP67
