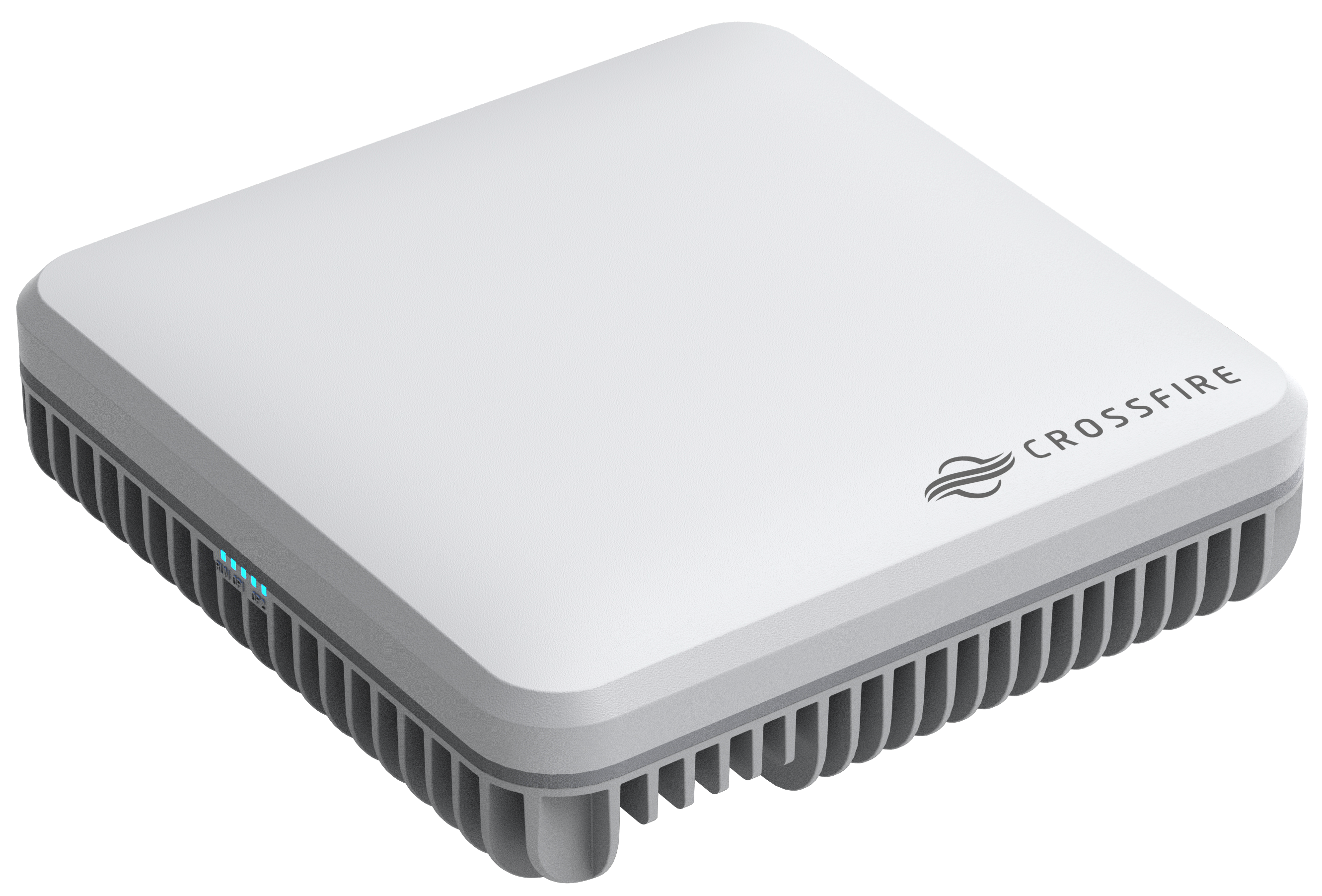

CrossFire N3RU

CrossFire N3 is a digital transport platform supporting cellular on fiber optic cable using the CPRI protocol. The digital radio supports 8 channels with a combined EiRP value of almost 1 Watt utilizing integrated antennas for cellular coverage. The N3 platform is part of the CrossFire 3.0 generation capable of supporting 5G technology, plus future RAN virtualization.
Availability:
Inquire

Technical Characteristics

●   Up to 25dBm Output Power

●   Octa Channels per Remote

●   Up to 200MHz IBW

●   Optical Connectivity

●   Sub-6GHz

●   SISO / 2x2 MIMO / 4x4 MIMO

●   Supports Band and Channel Selective Mode

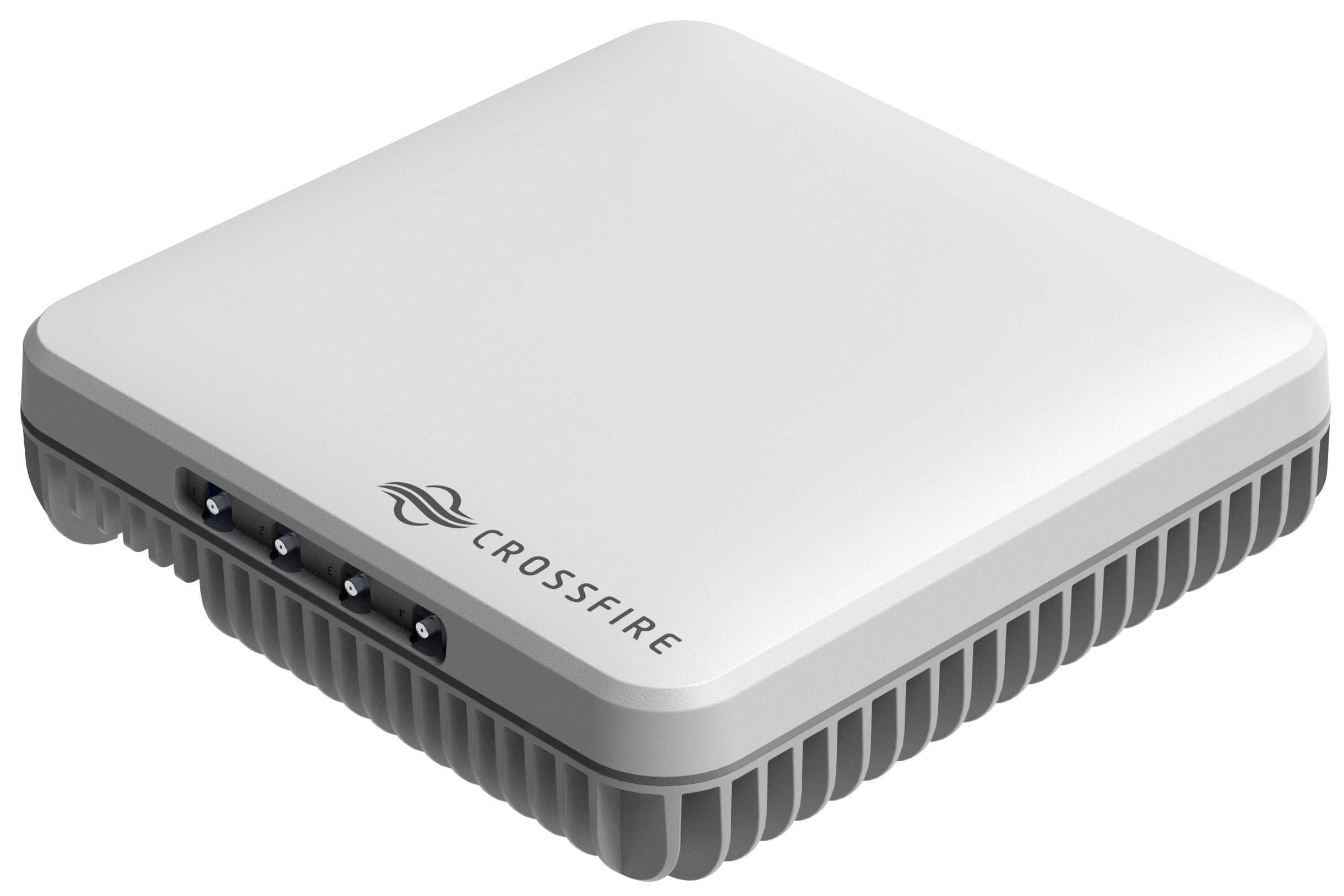

●   Integrated Antenna / External antenna
